SUBARU BRZ/TOYOTA GR86 - ZD8 / ZN8
PRODUCT LIST
TOYOTA GR86 / ZN8
| Product | Material | PART # | MSRP(yen) | REMARKS |
|---|---|---|---|---|
| AERO BONNET HOOD | CARBON | 8006M-T003 | JP¥250,000 | |
| FRP | 8006M-T004 | JP¥140,000 | ||
| LIGHTWIEGHT BONNET HOOD | CARBON | 8006M-T002 | JP¥180,000 | |
| FRONT DIFFUSER | CARBON | 8014M-T003 | JP¥115,000 | |
| FRP | 8014M-T007 | JP¥90,000 | ||
| SIDE DIFFUSERS | CARBON | 8008M-T002 | JP¥130,000 | |
| FRP | 8008M-T004 | JP¥95,000 | ||
| REAR SIDE DIFFUSER | CARBON | 8014M-T004 | JP¥70,000 | |
| FRP | 8014M-T008 | JP¥55,000 | ||
| EYE LINES | FRP | 8012M-T002 | JP¥22,000 | |
| AERO MIRROR | CARBON | 8009M-T002 | JP¥92,000 |
- Carbon products are unpainted. We recommend applying a clear coat to prevent gloss loss and whitening caused by UV exposure.
SUBARU BRZ / ZD8
| Product | Material | PART # | MSRP(yen) | REMARKS |
|---|---|---|---|---|
| AERO BONNET HOOD | CARBON | 8006M-F003 | JP¥250,000 | |
| FRP | 8006M-F004 | JP¥140,000 | ||
| LIGHTWEIGHT BONNET HOOD | CARBON | 8006M-F002 | JP¥180,000 | |
| FRONT DIFFUSER | CARBON | 8014M-F003 | JP¥115,000 | |
| FRP | 8014M-F004 | JP¥90,000 | ||
| SIDE DIFFUSERS | CARBON | 8008M-F002 | JP¥130,000 | |
| FRP | 8008M-F004 | JP¥95,000 | ||
| REAR SIDE DIFFUSER | CARBON | 8014M-F002 | JP¥70,000 | |
| FRP | 8014M-F006 | JP¥55,000 | ||
| AERO MIRROR | CARBON | 8009M-F002 | JP¥92,000 |
- Carbon products are unpainted. We recommend applying a clear coat to prevent gloss loss and whitening caused by UV exposure.

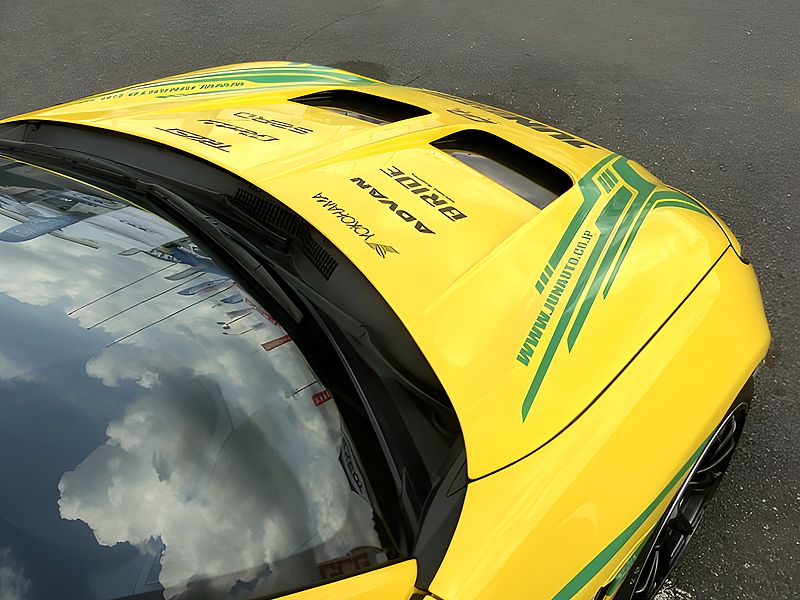

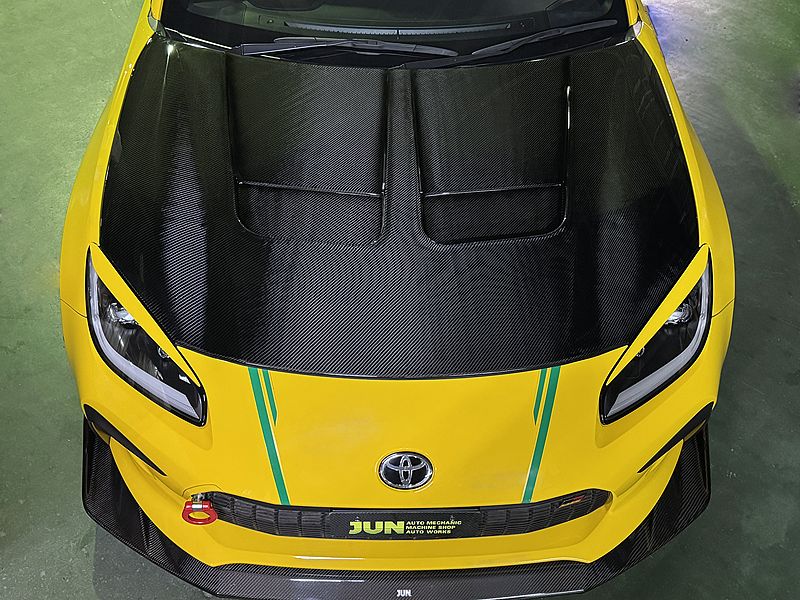

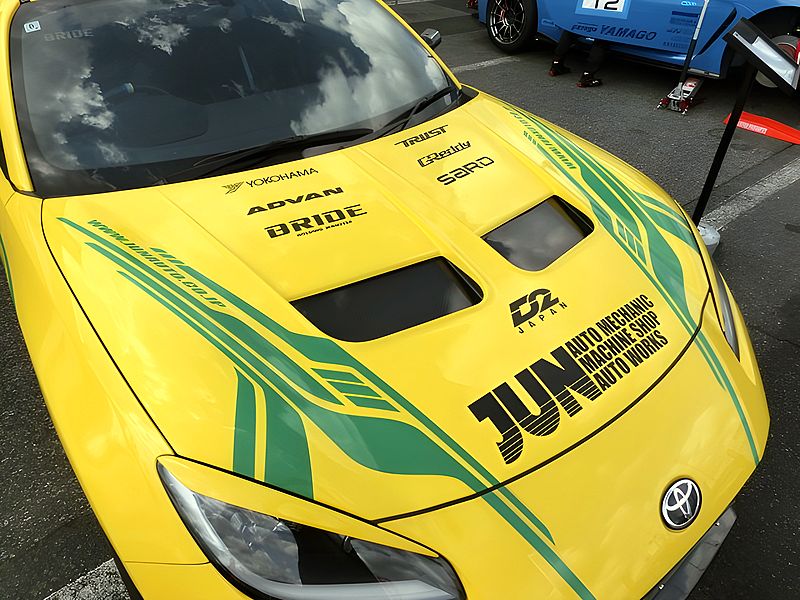

AERO BONNET HOOD
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- Please note that the bonnet pins and the installation process are not included in the delivered product.

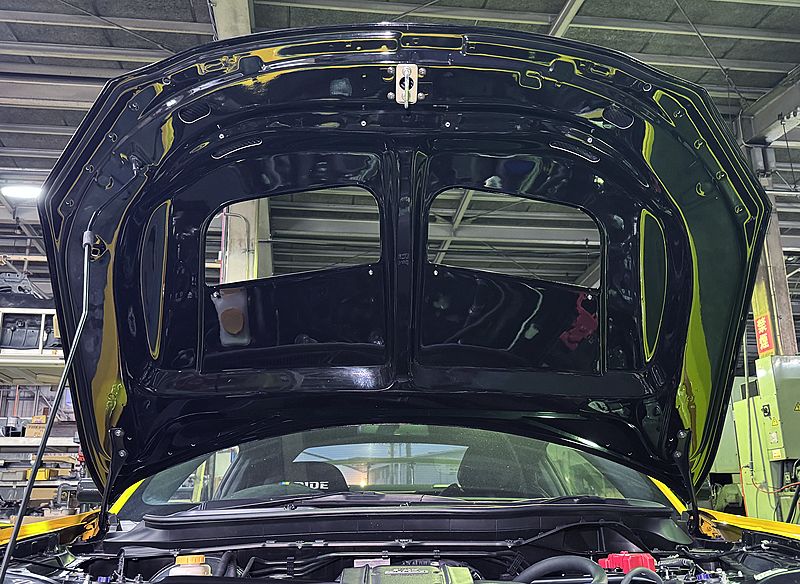

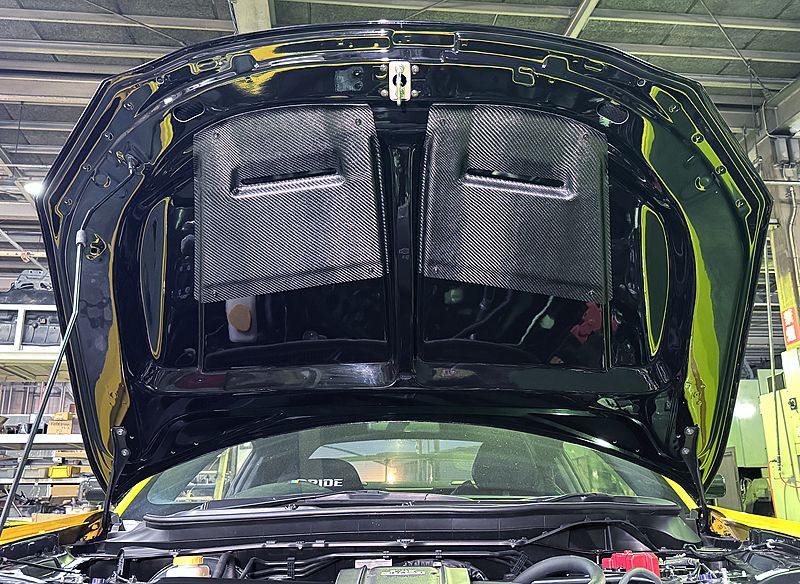

This product is a hood designed for sports driving, featuring an air outlet. The reverse side of the air outlet incorporates a removable water protector, which prevents rainwater ingress when installed. Removing the water protector enhances cooling performance.
| SPECIFICATIONS | ||
|---|---|---|
| Vehicle | TOYOTA GR86 / ZN8 SUBARU BRZ / ZD8 | |
| Material | WET CARBON /twill (Clear gel coat) | FRP(Black gel coat) |
| Weight | -.-kg | -.-kg |
| Width | ---mm | ---mm |
| Depth | ---mm | ---mm |
| Paint | No | No |
| Accessories | Water protector, bolts | |
- The carbon fiber hood will be some distortion of the surface due to the nature of the material.
- We recommend applying a clear coat to carbon fiber exterior parts to prevent gloss loss and whitening caused by ultraviolet rays.
- We welcome orders for clear coating of carbon fiber hood (JP¥66,000(w/tax)). Please contact us for more details.
- Weight and dimensions are the reference values. They may be different from the things.
- Entrust the professional shop whose reliability is high with the installation of this product.
- We cannot accept to return the purchasing products after painting, processing or fitting.
- Bonnet pins must be prepared separately. Be sure to install the hood pin to prevent it from falling off.
LIGHTWEIGHT BONNET HOOD
.jpg)
.jpg)
.jpg)
- Please note that the bonnet pins and the installation process are not included in the delivered product.
This product is made of wet carbon fiber and has the same shape as the genuine part. The outer and even the inner panels are made of CFRP, making it extremely lightweight, more than 3kg lighter than the factory hood (approx. 8.6kg).
| SPECIFICATIONS | ||
|---|---|---|
| Vehicle | TOYOTA GR86 / ZN8 SUBARU BRZ / ZD8 | |
| Material | WET CARBON /twill (Clear gel coat) | |
| Weight | -.-kg | |
| Width | ---mm | |
| Depth | ---mm | |
| Paint | No | |
| Accessories | Mounting Screws (M6 4pcs) | |
- The carbon fiber hood will be some distortion of the surface due to the nature of the material.
- We recommend applying a clear coat to carbon fiber exterior parts to prevent gloss loss and whitening caused by ultraviolet rays.
- We welcome orders for clear coating of carbon fiber hood (JP¥66,000(w/tax)). Please contact us for more details.
- Weight and dimensions are the reference values. They may be different from the things.
- Entrust the professional shop whose reliability is high with the installation of this product.
- We cannot accept to return the purchasing products after painting, processing or fitting.
- Bonnet pins must be prepared separately. Be sure to install the hood pin to prevent it from falling off.
FRONT DIFFUSER
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
This product is installed under the factory front bumper. The lip shape protrudes from the front of the bumper to increase the flat ground clearance and provide more downforce. Also, the canards effect improves the ground contact of the front tires in corners.
The ground clearance is 50mm at the front and 25mm at the rear ends of both wings, each lower than the bottom of the factory bumper. As a result, the underside of the diffuser is brought close to parallel to the ground surface. The height of the wingtip plates is 95mm.
| SPECIFICATIONS | ||
|---|---|---|
| Vehicle | TOYOTA GR86 / ZN8 SUBARU BRZ / ZD8 | |
| Material | WET CARBON /twill (Clear gel coat) | FRP(Black gel coat) |
| Weight | -.-kg | -.-kg |
| Width | ---mm | ---mm |
| Depth | ---mm | ---mm |
| Paint | No | No |
| Accessories | Stays and screws | |
- We recommend applying a clear coat to carbon fiber exterior parts to prevent gloss loss and whitening caused by ultraviolet rays.
- We welcome orders for clear coating of carbon front diffuser (JP¥55,000(w/tax)). Please contact us for more details.
- Weight and dimensions are the reference values. They may be different from the things.
- Entrust the professional shop whose reliability is high with the installation of this product.
- We cannot accept to return the purchasing products after painting, processing or fitting.
- They are same form of lip spoiler between the each vehicles.
SIDE DIFFUSERS
.jpg)
.jpg)
.jpg)
.jpg)
The shape of the duct protrudes from the vehicle body, speeding up the velocity of air flowing along the sides of the vehicle and efficiently channeling it to the rear of the vehicle. The ducts are installed as an extension of the fender slits, allowing air to escape from the wheel house and under the floor.
Ground clearance is 35mm lower than the bottom of the factory side steps. The height of the rear wing plate is 95mm.
| SPECIFICATIONS | ||
|---|---|---|
| Vehicle | TOYOTA GR86 / ZN8 SUBARU BRZ / ZD8 | |
| Material | WET CARBON /twill (Clear gel coat) | FRP(Black gel coat) |
| Weight | -.-kg | -.-kg |
| Width | ---mm | ---mm |
| Depth | ---mm | ---mm |
| Paint | No | No |
| Accessories | Screws | |
- We recommend applying a clear coat to carbon fiber exterior parts to prevent gloss loss and whitening caused by ultraviolet rays.
- We welcome orders for clear coating of carbon side diffusers (JP¥66,000(w/tax)). Please contact us for more details.
- Weight and dimensions are the reference values. They may be different from the things.
- Entrust the professional shop whose reliability is high with the installation of this product.
- We cannot accept to return the purchasing products after painting, processing or fitting.
REAR SIDE DIFFUSER
.jpg)
.jpg)
.jpg)
.jpg)
This diffuser is installed under both sides of the stock rear bumper. This diffuser suppresses turbulence behind the tires, and the rectification plates on the left and right sides allow air to flow smoothly backward.
Ground clearance is 25mm lower than the bottom of the factory side steps.
| SPECIFICATIONS | ||
|---|---|---|
| Vehicle | TOYOTA GR86 / ZN8 SUBARU BRZ / ZD8 | |
| Material | WET CARBON /twill (Clear gel coat) | FRP(Black gel coat) |
| Weight | -.-kg | -.-kg |
| Width | ---mm | ---mm |
| Depth | ---mm | ---mm |
| Paint | No | No |
| Accessories | Screws | |
- We recommend applying a clear coat to carbon fiber exterior parts to prevent gloss loss and whitening caused by ultraviolet rays.
- We welcome orders for clear coating of carbon rear side diffusers (JP¥44,000(w/tax)). Please contact us for more details.
- Weight and dimensions are the reference values. They may be different from the things.
- Entrust the professional shop whose reliability is high with the installation of this product.
- We cannot accept to return the purchasing products after painting, processing or fitting.
EYE LINES
.jpg)
The eyeline covers upper part of headlight so that it can express the intrepid face. It can express individual style.
| SPECIFICATIONS | |
|---|---|
| Vehicle | TOYOTA GR86 / ZN8 |
| Material | FRP(Black gel coat) |
| Weight | ---g |
| Width | ---mm |
| Height | ---mm |
| Paint | No |
| Accessories | No |
- Weight and dimensions are the reference values. They may be different from the things.
- Entrust the professional shop whose reliability is high with the installation of this product.
- We cannot accept to return the purchasing products after painting, processing or fitting.
AERO MIRROR
.jpg)
.jpg)
.jpg)
.jpg)
- The door mirror indicator (blind spot monitor) is not built into the mirror. For car models compatible with this function, the sensor failure warning can be suppressed by connecting the included LED to the existing wiring. It can also function as an equivalent warning light by installing the LED section as appropriate.
This product installs under each side of the stock rear bumper. This product is pre-finished with a clear coat.
| SPECIFICATIONS | |
|---|---|
| Vehicle | TOYOTA GR86 / ZN8 SUBARU BRZ / ZD8 |
| Material | WET CARBON (twill) |
| Weight | -.-kg |
| Paint | Clear-coated |
| Accessories | LED for BSD/RCTA |
- This product is a competition part. Use on public roads in Japan is restricted.
- Weight and dimensions are the reference values. They may be different from the things.
- Entrust the professional shop whose reliability is high with the installation of this product.
- We cannot accept to return the purchasing products after painting, processing or fitting.
