NISSAN CA18DE(T)

  • HIGH LIFT CAMSHAFT

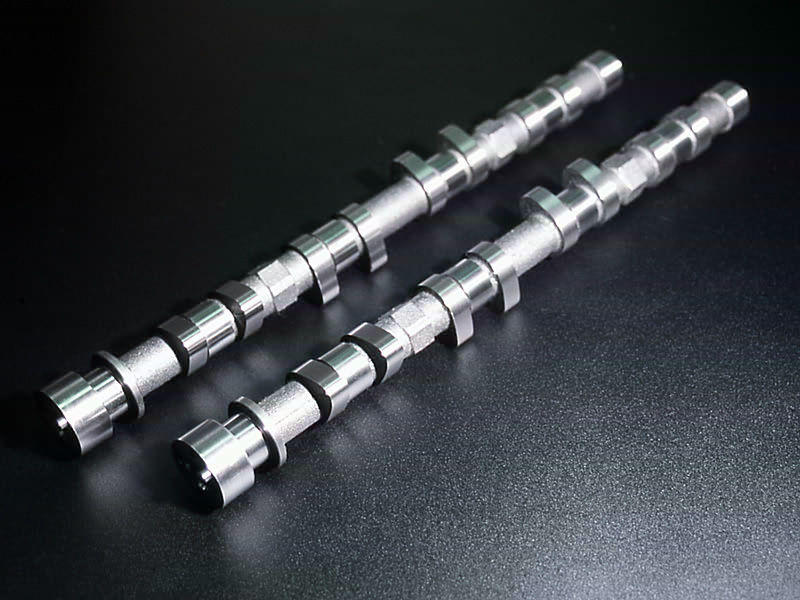

High Lift Camshafts for CA18DE(T) / Lash type (HLA)
Spec (unit:mm)   PART # MSRP(yen) REMARKS
Duration Lift
64 (256) 8.5 IN 1004M-N030 JPY44,000 [REQUIRED]Cam lobe refuge machining
EX 1004M-N130 JPY44,000
66 (264) 8.5 IN 1004M-N031 JPY44,000 [REQUIRED]Cam lobe refuge machining
EX 1004M-N131 JPY44,000
9.3 IN 1004M-N035 JPY44,000 [REQUIRED]Cam lobe refuge machining
EX 1004M-N135 JPY44,000
68 (272) 8.5 IN 1004M-N032 JPY44,000 [REQUIRED]Cam lobe refuge machining
EX 1004M-N132 JPY44,000
9.3 IN 1004M-N036 JPY44,000 [REQUIRED]Cam lobe refuge machining
EX 1004M-N136 JPY44,000
  • ‡ The height of lift is the valve lift.
  • ‡1 All of these camshafts need to trim your cylinder head.
  • ‡ カムノーズ逃げ加工とは、カム山がヘッドに干渉する場合にヘッド側を切削する加工です。弊社でも加工を承っています。
  • ‡ The solid type camshaft is the build-to-order manufacturing.
  • ‡ We prepare the Camshaft Kit which contains valve springs and valve retainers.
Camshaft Kit for CA18DE(T)
Stage # Content PART # MSRP(yen) REMARKS
INT CAM EXH CAM Valve S/P Retainer
Stage1 You can choose profile Ο N/A 1033M-N013 JPY112,200
Stage2 You can choose profile Ο Type 1 1033M-N014 JPY165,000
Stage2R You can choose profile Ο Type 2 1033M-N019 JPY180,400
Option A set of cam slide sprockets (2 pc.) 1033M-N704 discontinued
  • ‡ You can choose the profile from Regular camshaft series which is placed in this page. You cannot choose the custom made camshaft.
  • ‡ We will choose the product which can be used for the profile which you chose, when enclosing the valve springs and valve retainers of each stage.
  • Option (cam slide sprocket) is a special price in case you purchase together with a camshaft kit. You cannot buy it alone.
