HONDA H22A

  • HIGH LIFT CAMSHAFT

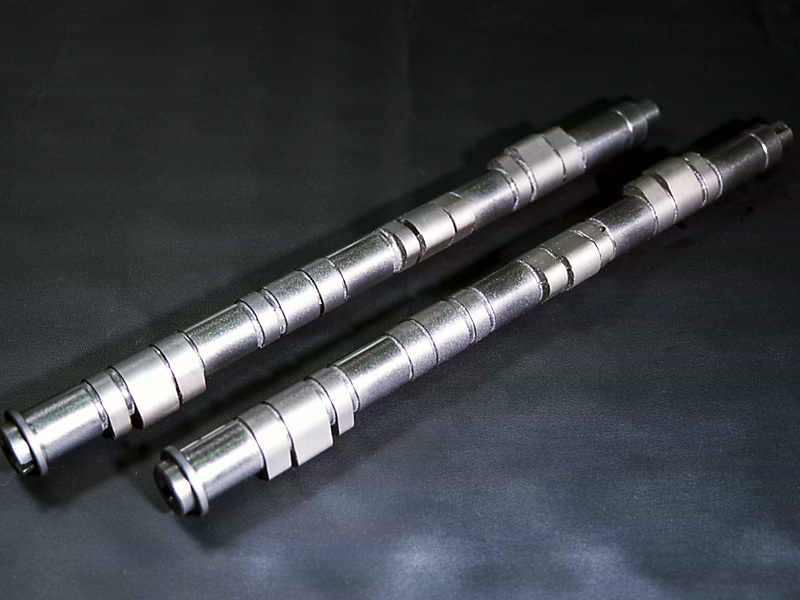

High Lift Camshafts for H22A
Name   Spec (unit: mm) PART # MSRP(yen) REMARKS
#1 (Pri) #2 (Mid) #3 (2nd) VC
Duration Lift Duration Lift Duration Lift
Type1 IN 60 (240) 7.7 74 (296) 12.2 62 (248) 9.2 0.17 1004M-H011 JPY70,400 [REQUIRED]Uprated valve spring
EX 63 (252) 9.0 74 (296) 11.9 61 (244) 7.7 0.19 1004M-H111 JPY70,400
  • VC=Valve Clearance (cool conditions)
  • ‡ The height of lift is the valve lift.
  • ‡1 This camshaft needs to use uprated valve springs.
  • ‡ We prepare the Camshaft Kit which contains valve springs and valve retainers.
Camshaft Kit for H22A
Stage # Content PART # MSRP(yen) REMARKS
INT CAM EXH CAM Valve S/P Retainer
Stage1 Type 1 Ο N/A 1033M-H006 JPY178,200
Stage2 Type 1 Ο Type 1 1033M-H007 JPY231,000
Stage2R Type 1 Ο Type 2 1033M-H009 JPY246,400
Option A set of cam slide sprockets (2 pc.) 1033M-H702 discontinued
  • ‡ You can choose from the profile which is placed in this page. You cannot choose the custom made camshaft.
  • ‡ We will choose the product which can be used for the profile which you chose, when enclosing the valve springs and valve retainers of each stage.
  • Option (cam slide sprocket) is a special price in case you purchase together with a camshaft kit. You cannot buy it alone.
